Labeling Machine (Custom-made machinery)

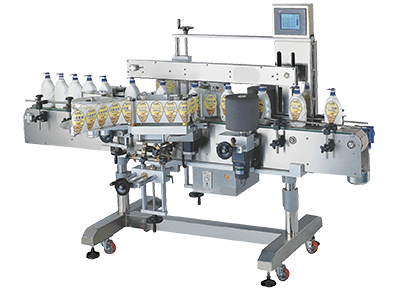

AP-650 Two Sides Labeling Machine

Labelling - Our Competence

Key Features:
  1. The machine is compact design for easy installation, operation and maintenance. Fast bottle set up.
  2. Main body is made of S304 stainless steel and anodized harden aluminum.
  3. Label dispensing is driven by stepping motor of great precision.
  4. All photocell sensors are famous branded of Japan or Germany, etc. as requested.
  5. Adopt Panasonic PLC.
  6. HMI LCD Touch panel with 99 sets memory in Enlish/Chinese interface. Other languages available as requested.
  7. Labeling head is adjustable inclined to 20 degrees.
  8. Custom made in Taiwan.
Applications

It is applicable to label on two sides for various products, such as oil tanks, machine tanks, beverage cans, etc.

Speicifications:

AP-650

Label Width:

10~130 mm

Labeling Speed:

0~25M/min

Labeling Accuracy:

± 1 mm

Power Supply:

1.5KW, AC 110/220V, 50/60Hz

Machine Dimensions:

L2500 x W 1400 x H1550mm

Machine Weight:

N.W. 220 kgs/ G.W. 400 kg

Options:

Date coder, Sensor for transparent labels



AP-650H

Label Width:

10~200 mm

Labeling Speed:

0~25M/min

Labeling Accuracy:

± 1 mm

Power Supply:

1.5KW, AC 110/220V, 50/60Hz

Machine Dimensions:

L2500 x W 1400 x H1550mm

Machine Weight:

N.W. 220 kgs/ G.W. 400 kg

Options:

Date coder, Sensor for transparent labels

* We can also adopt Swiss Collamat labeling engine conform to CE standard.
