Strapping Machine

Semi-Automatic Strapping Machine
Model:SP-4
SP-4 Semi-Automatic Strapping Machine
  1. Patented instant heat performance.
  2. Convenient external strapping tension adjustment.
  3. Automatic motor power off safety feature.
  4. Patented magnetic tension detector.
  5. Adjustable cooling time.
  6. Adjustable table height – Max. range: +140 mm.
Semi-Automatic Strapping Machine

Power Supply

Single phase, AC110V, 220V (50, 60Hz)

Driving Motor

Single phase, 1 / 4 HP

Maximum Tension

15~50 KGs

Strap Width

6, 9, 12, 15.5 mm (adjustable)

Minimum package Size

60 mm

Maximum Package

Any Size

Strapping Speed

2.0 Sec. / Strap

Strap Coil Size

Ø 200mm, Ø 280mm (optional.)

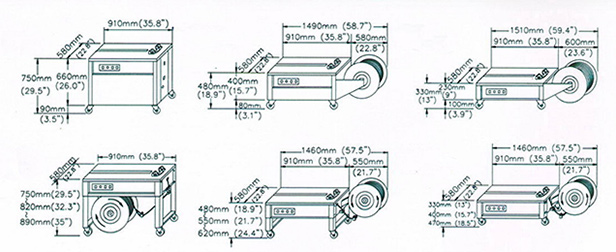

Machine Dimensions

L 910 x W 580 x H 750 mm

Package Dimensions

L 956 x W 626 x H 842 mm

Machine Weight

N.W.:100 KGs/ G.W.: 120KGs

Model:SP-1
  1. Enclosed cabinet.
  2. Specs same as SP-4
  3. Fixed table height.
Semi-Automatic Strapping Machine

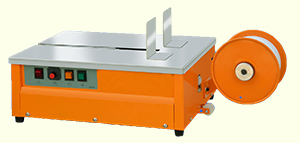

Model:SP-1SL
  1. Automatic motor power-switch off function.
  2. Low table height: 275mm.
  3. Especially suited to strapping heavy or bulky products.
Semi-Automatic Strapping Machine

Power Supply

Single phase, AC110V, 220V (50, 60Hz)

Driving Motor

Single phase, 1 / 4 HP

Maximum Tension

60 KGs

Strap Width

6, 9, 12, 15.5 mm (adjustable)

Minimum package Size

60 mm

Maximum Package

Any Size

Strapping Speed

1.5 Sec. / Strap

Strap Coil Size

Ø 200mm, Ø 280mm (optional.)

Machine Dimensions

L 840 x W 455 x H 275 mm

Package Dimensions

L 890 x W 520 x H 430 mm

Machine Weight

N.W.:49 KGs/ G.W.: 59KGs

Semi-Automatic Strapping Machine
