Strapping Machine

Automatic Strapping Machine
Model:TP-101
  1. Fully automatic strapping. Excellent for high production demands.
  2. Foot switch is provided for convenient operation.
  3. Optional table top sensing switch and or photo cell sensors allow for on-line integration.
Arch size
(Standard)
W850mm
H600mm
Table height 810mm
Strap width 9,12,15mm
Strapping speed 2 sec./Per Strap
Max. tension 80 KGs
Power supply 110,220,240,380V 50/60HZ 1 or 3 Phase
Machine dimensions W1400mm, D590mm, H1500mm
Weight 180 KGs
Automatic Strapping Machine
Model:TP-101PR
  1. Powered roller table.
  2. Automatic operation for automated package in-feed, strapping and out-feed.
  3. Ideal for high production demands and unmanned automatic production lines.
  4. Especially suited for strapping medium and heavy weight packages.
Automatic Strapping Machine
TP-101PR Automatic Strapping Machine for 2 straps per carton
Automatic Strapping Machine
Model:TP-101PB
  • Similar to TP-101PR, except with powered conveyor belt feed.
  • Especially suited for strapping small packages.
  • Photoelectric cell controls strapping and feeding motion.
Model:TP-201
  • Front mounted arch allows for side strapping.
  • Automatic strapping for online package in-feed and out-feed operations.
Automatic Strapping Machine
Automatic Strapping Machine
Model:TP-101AP
  • Suited for packaging non-compact products requiring compression before strapping.
  • Standard compression capacity is 30 kgs. Compression capacities other than standard are available upon request.
  • Maximum standard compression capacity to 30mm. Custom compression capacities available upon request.

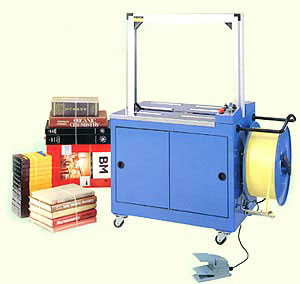

Model:TZ-600
  • Power supply:Three phase,220V/50HZ, 220V/60HZ, 380V/50HZ (Single Phase Optional)
  • Power consumption:0.85KVA
  • Driving motor:Three motor, 1/4HP
  • Maximum tension:60Kgs
  • Strap joint:Heat sealed
  • Strap width:9, 12, 15mm
  • Strapping speed:2 sec./ strap
  • Strap coil size:∮200mm/∮ 280mm(optional)
  • Minimum package size:H30×W80MM
  • Standard arch:W600mm×H600mm
Automatic Strapping Machine
