Labeling Machine (Custom-made machinery)

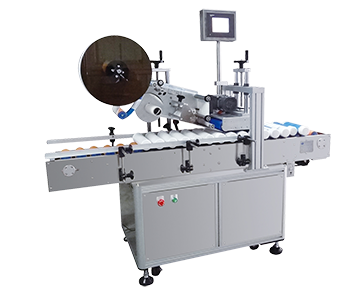

AP-613 Horizontal Round Bottle Labeling Machine

Labelling - Our Competence

Key Features:

1. The machine is compact design for easy installation, operation and maintenance. Fast bottle set up.
2. Main body is made of S304 stainless steel and anodized harden aluminum.
3. Label dispensing is driven by stepping motor of great precision.
4. All photocell sensors are famous branded of Japan or Germany, etc. as requested.
5. Adopt Panasonic PLC.
6. HMI LCD Touch panel with 99 sets memory in Enlish/Chinese interface. Other languages available as requested.
7. Custom made in Taiwan.

Applications

It suits for labeling narrow tubes which can not stand vertically, such as batteries, ampoules, pens, liquid papers, glues, drugs, injections, etc.

Speicifications:

AP-613

Label Width:

10~130 mm

Labeling Speed:

0~25M/min (adjustable)

Labeling Accuracy:

± 1 mm

Power Supply:

1KW, AC 110/220V, 50/60Hz

Product Diameter:

Ø11mm ~Ø25mm (custom-made as requested)

Machine Dimensions:

L1500 x W 650 x H1450 mm

Machine Weight:

N.W. 120 kgs/ G.W. 285 kg

Options:

Auto-feeding conveyor, Date coder, Sensor for transparent labels



AP-613H

Label Width:

10~200 mm

Labeling Speed:

0~25M/min (adjustable)

Labeling Accuracy:

± 1 mm

Power Supply:

1KW, AC 110/220V, 50/60Hz

Product Diameter:

Ø11mm ~Ø25mm (custom-made as requested)

Machine Dimensions:

L1500 x W 650 x H1450 mm

Machine Weight:

N.W. 120 kgs/ G.W. 285 kg

Options:

Auto-feeding conveyor, Date coder, Sensor for transparent labels

* We can also adopt Swiss Collamat labeling engine conform to CE standard.
