Labeling Machine (Custom-made machinery)

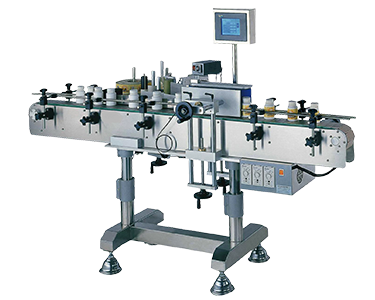

AP-630 Round Bottle Labeling Machine

Labeling - Our Competence

Key Features:
  1. The round bottle labeler machine is a compact design for easy installation, operation and maintenance. Fast bottle set up.
  2. The main body is made of S304 stainless steel and anodized hardened aluminum.
  3. Label dispensing is driven by the stepping motor of great precision.
  4. All photocell sensors are famous brands in Japan or Germany, etc. as requested.
  5. Adopt Panasonic PLC.
  6. HMI LCD Touch panel with 99 sets memory in English/Chinese interface. Other languages are available as requested.
  7. Custom made in Taiwan.
Applications

It suits for labeling all types of round bottles/cans.

Automatic Round Bottle Labeling Machine
Speicifications:

AP-630

Label Width:

10~130 mm

Labeling Speed:

0~25M/min (adjustable)

Labeling Accuracy:

± 1 mm

Power Supply:

700W, AC 110/220V, 50/60Hz

Bottle Diameter:

Ø100mm (custom-made as requested)

Machine Dimensions:

L2050 x W 900 x H1320 mm

Machine Weight:

N.W. 110 kgs/ G.W. 280 kg

Options:

Auto-feeding conveyor, Date coder, Sensor for transparent labels



AP-630H

Label Width:

10~200 mm

Labeling Speed:

0~25M/min (adjustable)

Labeling Accuracy:

± 1 mm

Power Supply:

700W, AC 110/220V, 50/60Hz

Bottle Diameter:

Ø100mm (custom-made as requested)

Machine Dimensions:

L2050 x W 900 x H1320 mm

Machine Weight:

N.W. 110 kgs/ G.W. 280 kg

Options:

Auto-feeding conveyor, Date coder, Sensor for transparent labels

* We can also adopt Swiss Collamat labeling engine conform to CE standard.
